รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | QSFP28-100G-CU1M |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | QSFP28-100G-CU1M |
The Huawei QSFP28-100G-CU1M is a high-speed, 1-meter direct-attach cable designed for 100G connections. It is ideal for indoor use, offering reliable performance for data centers and high-speed networking environments. This cost-effective solution caters to engineers and procurement personnel looking to future-proof their network infrastructure.

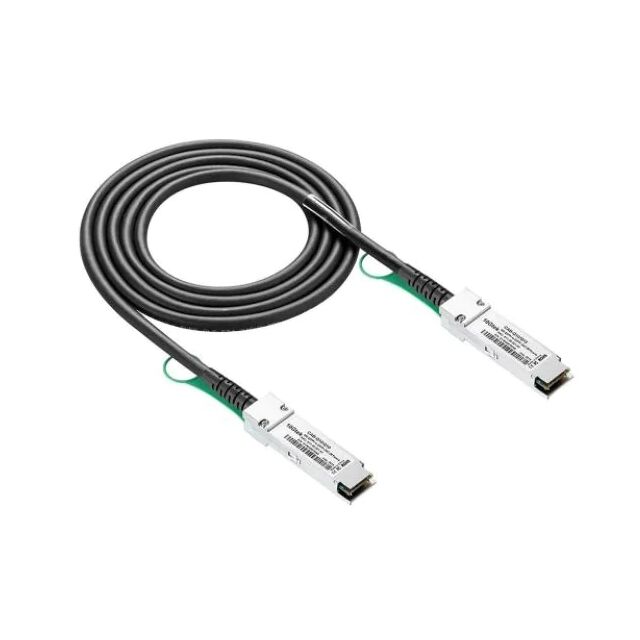

Figure 1 shows the front panel of QSFP28-100G-CU1M.
| Features | Huawei QSFP28-100G-CU1M | Arista QSFP-100G-CU1M | Cisco QSFP-H40G-AOC1M | Juniper QFX-SFP-DAC-1M | Brocade XBR-000245 | Extreme Networks 10311 | D-E-L-L DAC-QSFP-40G-1M |
|---|---|---|---|---|---|---|---|
| Speed | 100G | 100G | 40G | 100G | 40G | 100G | 40G |
| Length | 1 meter | 1 meter | 1 meter | 1 meter | 1 meter | 1 meter | 1 meter |
| Connector Type | QSFP28 | QSFP28 | QSFP | QSFP+ | QSFP+ | QSFP+ | QSFP+ |
| Usage Scenario | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Cost-effective | Yes | No | Yes | No | Yes | No | Yes |
| Accessory Model | Description |
|---|---|
| Huawei SFP-10G-LR | 10G SFP+ Transceiver |
| Huawei QSFP-40G-SR4 | 40G QSFP+ Transceiver |
| Huawei MPO-MPO-2M | MPO Patch Cable, 2m |
QSFP28-100G-CU1M Specifications |
|
| Brand | Huawei |
| Product Name | QSFP28-100G-CU1M |
| Transceiver Type | QSFP28 |
| Data Rate | 100 Gbps |
| Cable Type | High Speed Direct-attach Cables |
| Cable Length | 1 meter |
| Connector Type | QSFP28 |
| Manufacturer Part Number | CC8P0.254B(S) |
| Application | Indoor |
| Compatibility | QSFP28 Ports |
| Operating Temperature | 0 to 70°C |
| Storage Temperature | -40 to 85°C |
| Power Consumption | 3.5W Maximum |
| Data Transfer Distance | 1 meter |
| EMC | Compliant with standards |
| RoHS Compliance | Yes |
| Hot Swappable | Yes |
| Protocol Support | IEEE 802.3bm |
| Cable Diameter | 30 AWG |
| Housing Material | Copper |
