รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | SFP-10G-BXU1 |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | SFP-10G-BXU1 |
The Huawei SFP-10G-BXU1 is a high-performance 10GBase, Bidirectional Optical Transceiver, designed for stable and efficient data transmission. This SFP+ module supports a 10G speed over single-mode fiber, operating at TX1270nm/RX1330nm wavelengths and covering a distance up to 10 kilometers. With its compact design and reliable performance, the Huawei SFP-10G-BXU1 is an ideal choice for various networking applications.

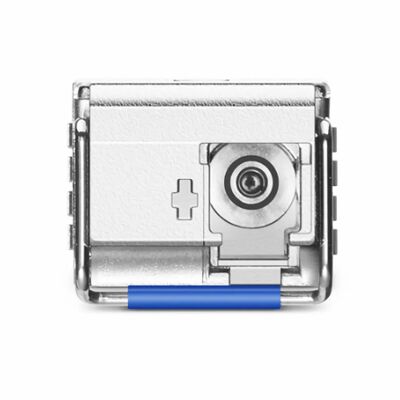

Figure 1 shows the front panel of SFP-10G-BXU1.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | SFP-10G-BXU1 |
| Technology | 10GBase-BIDI |
| Connector Type | LC |
| Wavelength | TX1270nm/RX1330nm |
| Maximum Distance | 10 km |
| Accessory | Model |
| LC Duplex Fiber Patch Cable | LC-DX-10M |
| Spare SFP+ Transceiver | SFP-10G-SR |
| LC to SC Adapter | ADP-LC-SC-SM |
| Model | Differences |
| Cisco SFP-10G-BXU | Different brand compatibility |
| Juniper EX-SFP-10GE-BX-U | Operates at different wavelength pairs |
| Arista SFP-10G-BX20-U | Supports longer distance up to 20 km |
SFP-10G-BXU1 Specifications |
|
| Brand | Huawei |
| Product Name | SFP-10G-BXU1 |
| Type | BIDI Optical Transceiver |
| Data Rate | 10GBase |
| Form Factor | SFP+ |
| Transmission Speed | 10G |
| Optical Mode | Single-mode |
| Wavelength (TX/RX) | TX1270nm / RX1330nm |
| Maximum Distance | 10km |
| Connector Type | LC |
| Temperature Range | 0°C to 70°C (commercial) |
| Power Supply Voltage | 3.3V |
| Power Consumption | Less than 1.5W |
| EMI | FCC Part 15 Class B, EN 55022 |
| Laser Safety | IEC-60825 |
| RoHS | RoHS-6 compliant |
| Compatible Standards | IEEE 802.3ae |
| Digital Diagnostic Monitoring | Yes (DDM) |
| Hot Swappable | Yes |
| MTBF | Over 1 million hours |
| Warranty | 1 year |
