รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | OSX010000 |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | OSX010000 | ||
| เน้น: | Huawei SFP+ optical transceiver 10G,10G SFP+ module 1310nm,Huawei SFP+ transceiver 10km |
||

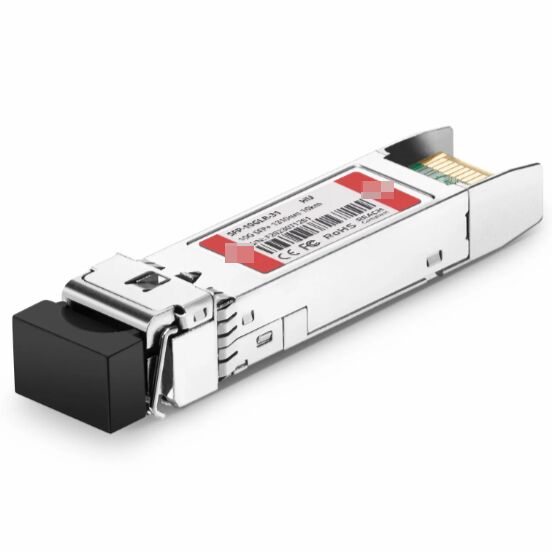

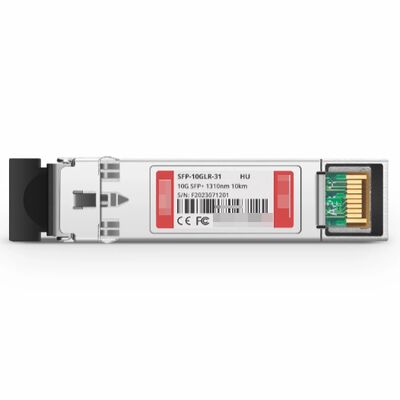

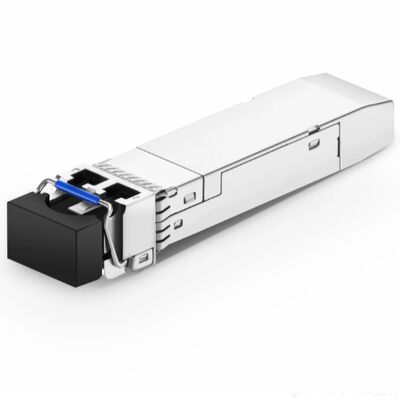

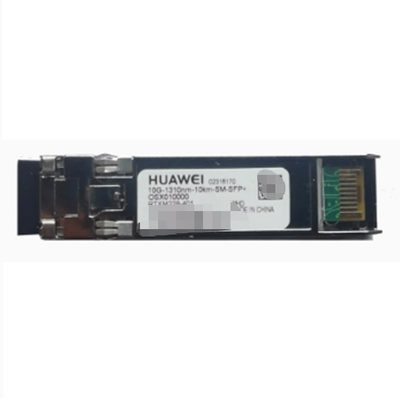

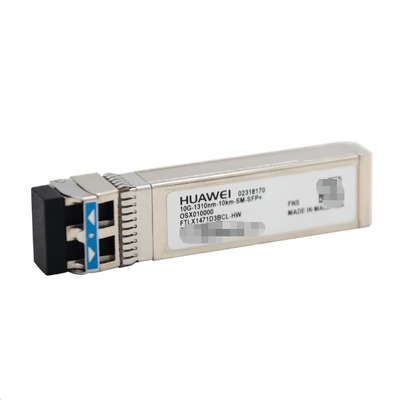

The OSX010000 is a high-performance 10G SFP+ optical transceiver module designed for reliable long-distance fiber transmission. It operates at a wavelength of 1310nm and supports transmission distances up to 10km over single-mode fiber with an LC duplex connector.
Figure 1 shows the front panel of OSX010000.
Table 1 shows the Quick Specs.
|
Product Code |
OSX010000 |
|
Transceiver form factor |
SFP+ |
|
Transmission speed |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
|
Standard compliance |
10Gbase-LR |
|
Connector type |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-12.6 |
|
Overload power (dBm) |
0.5 |
|
Extinction ratio (dB) |
3.5 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
|
Net Dimension(D x W x H mm) |
110 x 70 x 37 |
|
Model |
Description |
|
S5700-28P-LI-AC |
24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
|
S5700-28TP-LI-AC |
24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
|
S5700S-52P-LI-AC |
48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
|
S5700-28P-PWR-LI-AC |
24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
|
S5700-10P-PWR-LI-AC |
8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
|
S5720-36C-EI-AC |
28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC |
|
S5700-28C-EI-AC |
24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
|
S5720-56C-HI-AC |
48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
|
S5720-56PC-EI-AC |
48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
|
S5720-56C-PWR-HI-AC |
48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |
|
Item |
OSX010000 |
OMXD30000 |
|
Transceiver form factor |
SFP+ |
SFP+ |
|
Transmission speed |
10 Gbit/s |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
1310 |
|
Standard compliance |
10Gbase-LR |
10GBASE-iLR |
|
Connector type |
LC |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km |
Single-mode fiber: 1.4 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-12.6 |
-14.4 |
|
Overload power (dBm) |
0.5 |
0.5 |
|
Extinction ratio (dB) |
3.5 |
3.5 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
-40°C to +85°C (-40°F to +185°F) |
OSX010000 Specification |
|
|
Transceiver form factor |
SFP+ |
|
Transmission speed |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
|
Standard compliance |
10Gbase-LR |
|
Connector type |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-12.6 |
|
Overload power (dBm) |
0.5 |
|
Extinction ratio (dB) |
3.5 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
|
Net Dimension(D x W x H mm) |
110 x 70 x 37 |
