รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | QSFP-100G-BIDI-G2 |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | QSFP-100G-BIDI-G2 |
The QSFP-100G-BIDI-G2 is a high-performance, QSFP28 form-factor BiDi (Bi-Directional) optical transceiver module. It is specifically designed for 100 Gigabit Ethernet short-reach applications within data centers. Leveraging BiDi technology, this module transmits and receives data at 850nm and 910nm wavelengths simultaneously over a single duplex LC multimode fiber (MMF), effectively doubling the fiber infrastructure capacity.

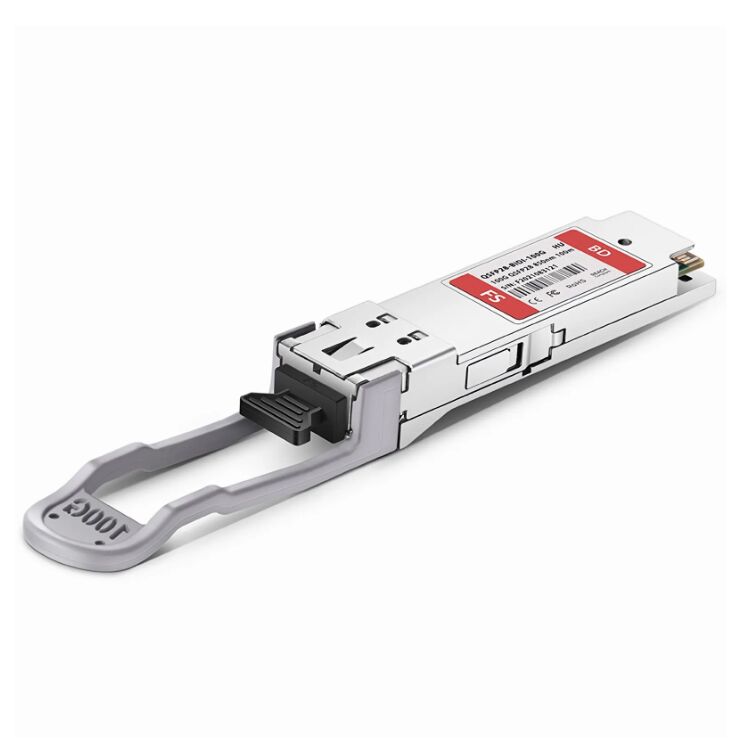

Figure 1 shows the front panel of QSFP-100G-BIDI-G2.
Table 1 shows the Quick Specs.
| Parameter | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 100Gbps (103.1Gbps) |
| Wavelength | 850nm / 910nm |
| Max Distance | 70m (OM3), 100m (OM4) |
| Connector | Duplex LC |
| Fiber Type | Multimode (MMF) |
| Temperature | 0°C to 70°C |
| Diagnostics | DDM/DOM Support |
| Parameter | Specification |
|---|---|
| Product Model | QSFP-100G-BIDI-G2 |
| Form Factor | QSFP28 MSA |
| Standard | 100G-BIDI, IEEE 802.3bm |
| Data Rate | 100 Gbps (4x25Gbps) |
| Wavelength (Tx/Rx) | 850 nm / 910 nm |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Max Transfer Distance | 70m over OM3, 100m over OM4 |
| Connector Interface | Duplex LC/UPC |
| Fiber Type | 50/125µm Multimode (OM3/OM4) |
| Power Consumption | < 4W |
| Operating Voltage | 3.3V |
| Operating Temperature | Commercial (0°C to +70°C) |
| Digital Diagnostics | DDM / DOM (Digital Optical Monitoring) |
| FEC | KP4 FEC Support |
| Safety & Compliance | RoHS-6, CE |
| Application | Data Center 100G Ethernet, 40G to 100G Upgrade |
