รายละเอียดสินค้า:
|
| ชื่อสินค้า: | จุดเชื่อมต่อ | หมายเลขชิ้นส่วน: | EWP-WA6638-FIT |
|---|---|---|---|
| การชำระเงิน: | ทีที | การจัดส่ง: | ดีเอชแอล |
| เงื่อนไข: | ใหม่ | เวลานำ: | 2-3 วัน |
| การรับประกัน: | 1 ปี | คำหลัก: | EWP-WA6638-FIT |
| เน้น: | H3C Wi-Fi 6 access point,tri-radio wireless access point,10GE PoE access point |
||

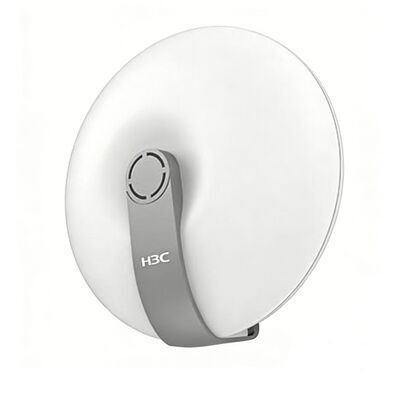

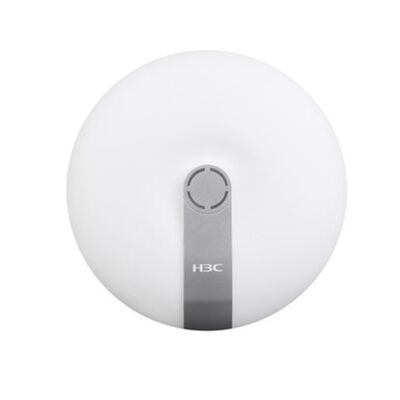

The H3C EWP‑WA6638‑FIT is a high‑performance indoor Wi‑Fi 6 (802.11ax) access point designed for enterprise environments, high‑density offices, conference centers, and education campuses. It features a tri‑radio 12‑stream architecture (4×4 2.4GHz + dual 4×4 5GHz) delivering a total wireless throughput of up to 5.95 Gbps, enabling seamless support for hundreds of concurrent users and bandwidth‑intensive applications like 4K video conferencing and cloud services.
| Item | Specification |
|---|---|
| Model | EWP‑WA6638‑FIT |
| Wi‑Fi Standard | 802.11ax (Wi‑Fi 6) |
| Radio | Tri‑radio: 4×4 2.4GHz + 4×4 5GHz + 4×4 5GHz |
| Max Rate | 5.95 Gbps |

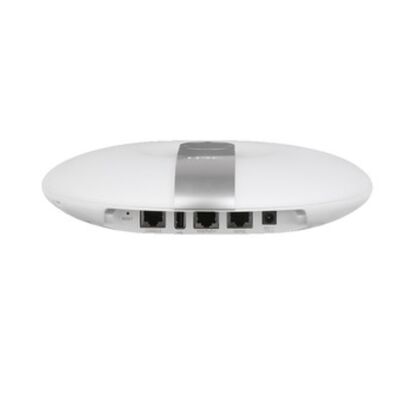

| Ports | 1×10GE (PoE in), 1×GE (PoE out), 1×USB 2.0 |
| Power | 802.3bt PoE or 54V DC |
| Installation | Ceiling‑mount, wall‑mount |
| Built‑in | BLE 5.0, omnidirectional antennas |
| Parameter | Details |
|---|---|
| Product Name | H3C EWP‑WA6638‑FIT Indoor Wireless Access Point |
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Radio Configuration | 3 radios: 2.4GHz (4×4 MIMO), 5GHz (4×4 MIMO), 5GHz (4×4 MIMO) |
| Max Aggregate Rate | 5.95 Gbps |
| Modulation | 1024QAM, OFDMA, MU‑MIMO |
| Transmit Power | 26 dBm (per band, regulatory compliant) |
| Ethernet Ports | 1×10/100/1000/2.5G/5G/10GBASE‑T (PoE input, 802.3bt/at)
|
| Console | 1×RJ‑45 console port |
| USB | 1×USB 2.0 (2.5W) |
| Antenna | Built‑in omnidirectional antennas
|
| IoT | Built‑in BLE 5.0 (iBeacon support) |
| Power Input | PoE: 802.3bt (up to 90W)
|
| Max Power Consumption | ≤30W |
| Dimensions | 236 × 236 × 52 mm |
| Weight | 1.3 kg |
| Operating Temp | −10°C to 55°C |
| Humidity | 5%–95% (non‑condensing) |
| Installation | Ceiling mount, wall mount |
| Management | Fit mode (managed by H3C AC), HTTP/HTTPS, SSH, Telnet, SNMP |
