รายละเอียดสินค้า:
|
| ชื่อสินค้า: | สวิตช์อีเทอร์เน็ตของ Cisco | หมายเลขชิ้นส่วน: | C9300-48P-A |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล/เฟดเอ็กซ์ | การชำระเงิน: | TT/เพย์พาล |
| เงื่อนไข: | ใหม่ | การรับประกัน: | 1 ปี |
| เวลานำ: | 1 ~ 3 วัน | คำสำคัญ: | C9300-48P-A |

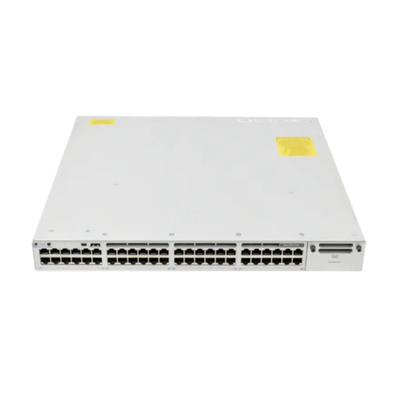

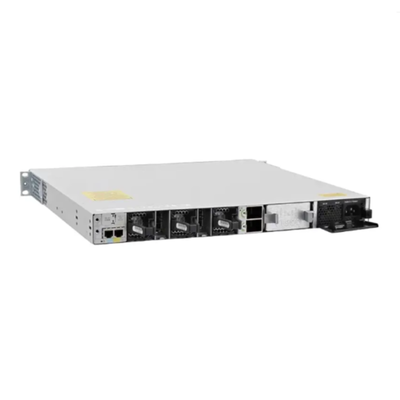

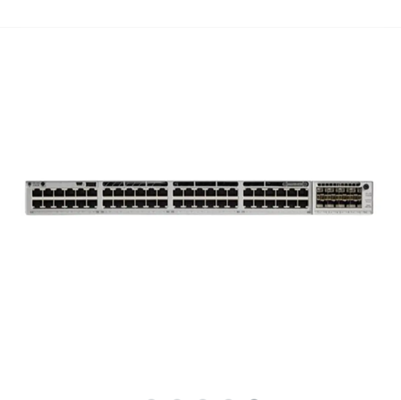

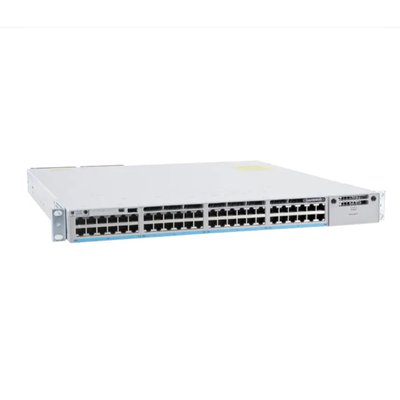

The Cisco Catalyst C9300-48P-A is a high-performance enterprise access switch designed for modern campus, branch, and enterprise networks. As part of the Cisco Catalyst 9300 Series, this model delivers 48 Gigabit Ethernet PoE+ ports, a 437W PoE power budget, advanced Layer 3 capabilities, and Cisco Network Advantage licensing.
Built for security, scalability, IoT connectivity, and cloud-managed environments, the C9300-48P-A supports StackWise-480 technology with up to 480 Gbps stacking bandwidth, enabling organizations to simplify management while improving network resiliency.
Provides 48 IEEE 802.3at PoE+ ports capable of powering:
The included 715W AC power supply delivers up to 437W of PoE power for high-density device deployments.
Includes advanced enterprise networking features:
Supports:
Compatible with optional uplink modules:
Supporting 1G, 10G, and 40G uplink connectivity.
| Specification | C9300-48P-A |
|---|---|
| Product Model | C9300-48P-A |
| Product Series | Cisco Catalyst 9300 |
| Ports | 48 x 10/100/1000 PoE+ |
| PoE Budget | 437W |
| Power Supply | 715W AC |
| Switching Capacity | 256 Gbps |
| Stacking Bandwidth | 480 Gbps |
| MAC Addresses | 32,000 |
| IPv4 Routes | 32,000 |
| IPv6 Routes | 16,000 |
| Multicast Routes | 8,000 |
| Software License | Network Advantage |
| Management | Cisco IOS XE |
| StackWise-480 | Supported |
| StackPower | Supported |
Organizations upgrading their campus infrastructure require a switch that delivers performance, security, and future-ready scalability.
The C9300-48P-A provides:
It is ideal for:
| Feature | C9300-48P-A | C9300-48T-A |
|---|---|---|
| Ports | 48 x PoE+ | 48 x Data Ports |
| PoE Support | Yes | No |
| PoE Budget | 437W | N/A |
| Network Advantage License | Yes | Yes |
| Layer 3 Routing | Yes | Yes |
| Best For | APs, Cameras, Phones | Standard Data Networks |
Choose C9300-48P-A if your network requires power delivery to connected devices.
Choose C9300-48T-A if you only need Ethernet connectivity without PoE requirements.
Powering:
Supporting:
Providing secure connectivity for:
Connecting:
The "A" indicates the switch includes the Cisco Network Advantage license, providing advanced Layer 3 routing and enterprise services.
Yes. The switch provides PoE+ (IEEE 802.3at) with up to 437W total available power.
Yes. Cisco StackWise-480 supports stacking up to eight Catalyst 9300 switches with 480 Gbps stacking bandwidth.
Supported uplink modules include:
These provide flexible 1G, 10G, and 40G uplink options.
Yes. The Catalyst 9300 Series is widely deployed as an enterprise access layer switch for high-density wireless environments and modern campus networks.
We offer:
All products are fully tested before shipment.
When purchasing from us, you receive:
Our team supports customers worldwide in deploying Cisco switching solutions for enterprise, campus, and data center environments.
