รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | 1.6T OSFP DR8 |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | 1.6T OSFP DR8 |

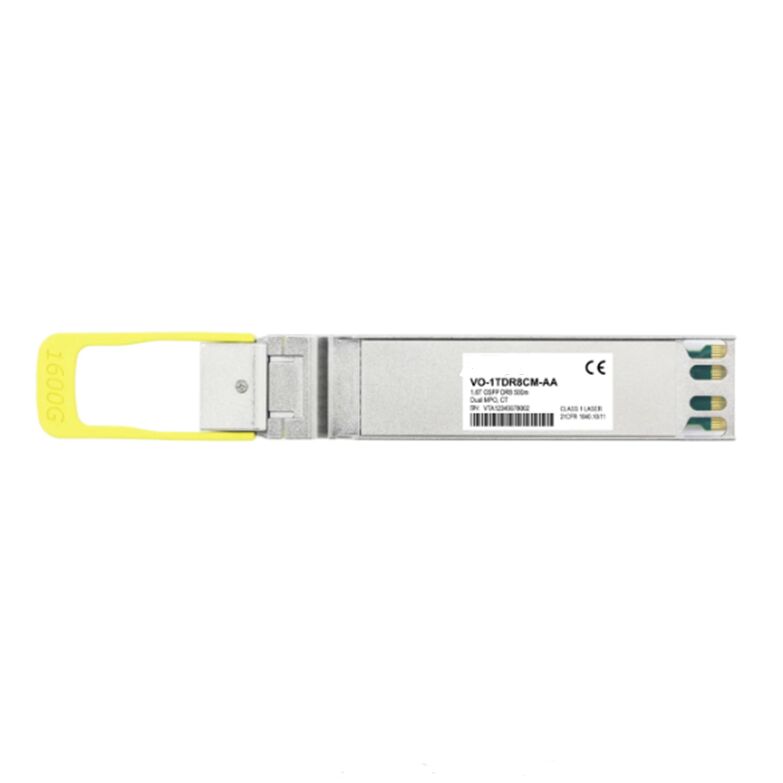

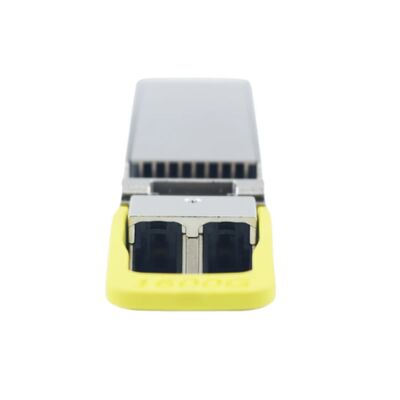

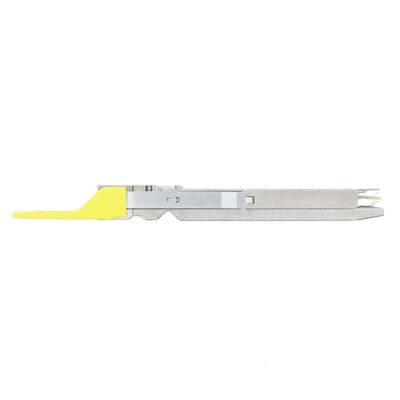

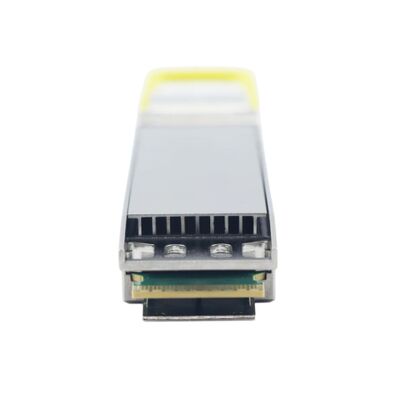

This 1.6T OSFP DR8 optical transceiver is a high-speed module built for next-generation data center, AI computing and high-performance networking. It supports 1.6Tbps full-duplex transmission over 16 lanes of 100G PAM4 electrical signals, complying with 1.6TBASE-DR8 and OSFP MSA standards.
Table 1 shows the Quick Specs
| Item | Specification |
|---|---|
| Form Factor | OSFP |
| Data Rate | 1.6Tbps |
| Standard | 1.6TBASE-DR8 |
| Wavelength | 1310nm |
| Fiber | SMF |
| Reach | 500m |
| Connector | MPO-12 |
| Temp | 0°C~70°C |
| Management | CMIS,DDM |
| Parameter | Detail |
|---|---|
| Form Factor | Hot-pluggable OSFP |
| Total Bandwidth | 1.6 Tbps |
| Electrical Lane | 16x100G PAM4 |
| Optical Standard | 1.6TBASE-DR8, IEEE 802.3df |
| Wavelength | 1310nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Transmission Distance | Up to 500m |
| Connector Type | MPO-12 APC |
| Power Consumption | <20W |
| Supply Voltage | 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Management Interface | CMIS 5.0+, I2C |
| Diagnostics | DDM / VDM Real-time Monitoring |
| Laser Class | Class 1 |
| Compliance | RoHS, OSFP MSA, IEEE |
| Applications | AI Cloud, HPC, Data Center Interconnect |
