รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องรับส่งสัญญาณแสง SFP | หมายเลขชิ้นส่วน: | 800G OSFP DR4 |
|---|---|---|---|
| การจัดส่ง: | ดีเอชแอล | เงื่อนไข: | ใหม่ |
| เวลานำ: | 2-3 วัน | การรับประกัน: | 1 ปี |
| คำหลัก: | 800G OSFP DR4 |

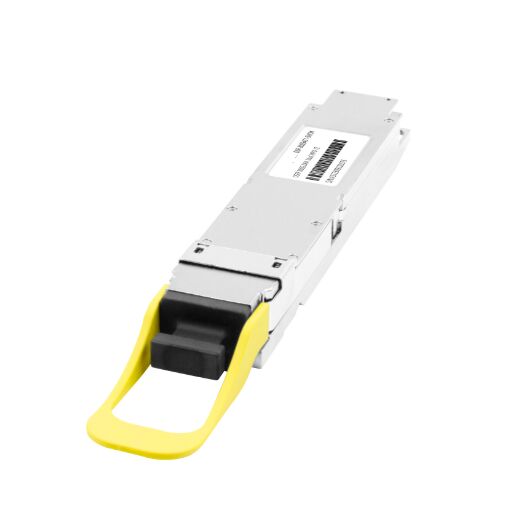

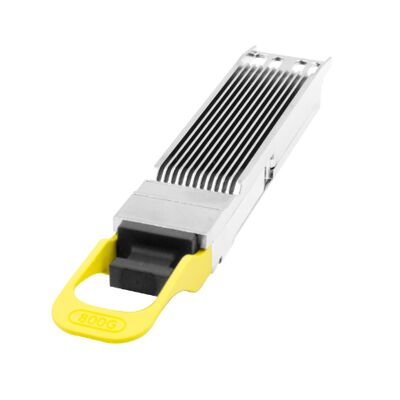

This 800G OSFP DR4 is a high-performance, hot-pluggable optical transceiver designed for next-generation 800G Ethernet links in data centers, AI/ML clusters, and high-performance computing (HPC) environments. It complies with the IEEE 802.3ck 800GBASE-DR4 standard and OSFP MSA specifications, delivering 800 Gbps bandwidth over 8 lanes of 100 Gbps PAM4 signaling.
Table 1 shows the Quick Specs
| Parameter | Details |
|---|---|
| Form Factor | OSFP MSA |
| Data Rate | 800Gbps (8x100G PAM4) |
| Standard | 800GBASE-DR4, IEEE 802.3ck |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode (SMF) |
| Reach | Up to 500 m |
| Connector | Dual MPO-12/APC |
| Power | < 16 W |
| Temperature | 0°C ~ 70°C (Case) |
| Management | CMIS 5.0+, DDM/VDM |
| Parameter | Specification |
|---|---|
| Product Model | 800G OSFP DR4 |
| Form Factor | Hot-pluggable OSFP |
| Max Data Rate | 800 Gbps (8 electrical lanes × 100 Gbps PAM4) |
| Optical Standard | 800GBASE-DR4, IEEE 802.3ck |
| Wavelength | 1310 nm (CW DFB/EML) |
| Modulation | PAM4, 53.125 GBd |
| Fiber Type | 9/125 μm Single-mode Fiber (SMF) |
| Max Transmission Distance | 500 meters |

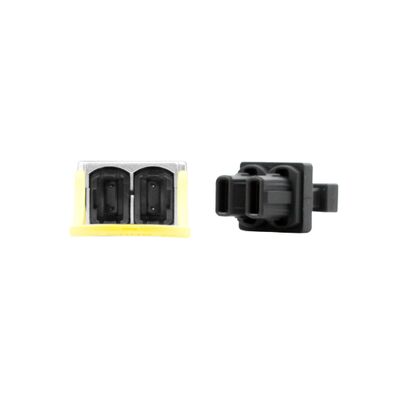

| Optical Connector | 2 × MPO-12/APC (dual connector) |
| Power Supply | Single 3.3 V |
| Power Consumption | Typical < 15 W, Max < 16 W |
| Operating Case Temp | 0°C to 70°C |
| Storage Temp | -40°C to 85°C |
| Management Interface | I2C, CMIS 5.0 / 5.1 / 5.2 |
| Diagnostics | Digital Diagnostics Monitoring (DDM/DOM), VDM |
| Laser Class | Class 1/1M |
| Compliance | RoHS, IEEE, OSFP MSA, CMIS |
| Applications | Data Centers, AI/ML, HPC, Cloud, 800G Ethernet |
