รายละเอียดสินค้า:
|
| ชื่อสินค้า: | สวิตช์เครือข่ายของหัวเว่ย | หมายเลขชิ้นส่วน: | S5735-L48LP4S-A-V2 |
|---|---|---|---|
| การชำระเงิน: | TT/เพย์พาล | การจัดส่ง: | ดีเอชแอล |
| เงื่อนไข: | ใหม่ | เวลานำ: | 2-3 วัน |
| การรับประกัน: | 1 ปี | คำหลัก: | S5735-L48LP4S-A-V2 |
| เน้น: | Huawei S5735-L switch 48-port PoE+,Huawei network switch 10GE SFP+ ports,Huawei L48LP4S switch dual AC power |
||

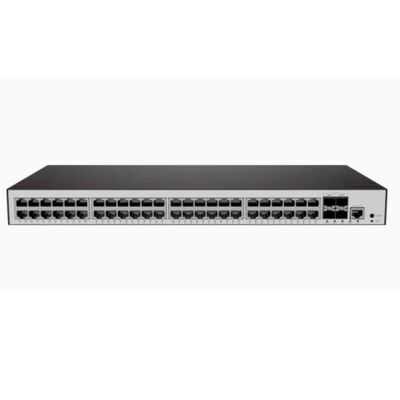

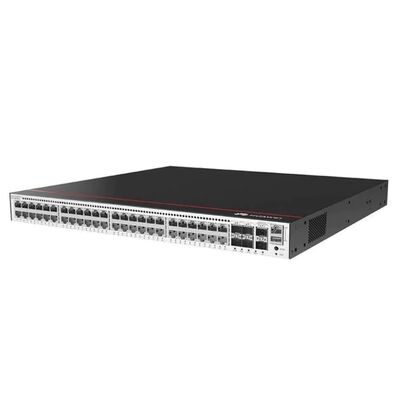

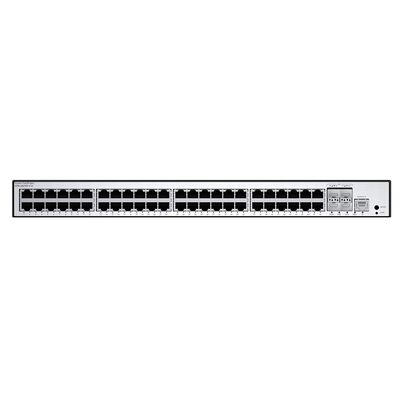

The Huawei S5735-L48LP4S-A-V2 is a next-generation, energy-saving gigabit Ethernet switch that provides flexible all-gigabit access and enhanced PoE capabilities. This product is designed for scenarios requiring high reliability, high security, and simple network deployment, making it an ideal solution for enterprise networks and campus networks.
| Parameter | Data |
|---|---|
| Product Code | S5735-L48LP4S-A-V2 |
| Port Quantity | 48 Ethernet 10/100/1000 PoE+ ports, 4 SFP ports |
| Forwarding Performance | 104 Mpps |
| Switching Capacity | 256 Gbps |
| Power Over Ethernet | Supports up to 370W PoE power |
| Accessory | Model |
|---|---|
| Power Supply Unit | PWR-600W-AC |
| SFP Module | 1G-SFP-LX |
| Stacking Module | S5730S-48P-LI-AC |
| Model | Differences |
|---|---|
| S5735-L24P4X-A | 24 PoE+ ports, No support for MPLS |
| S5735-L48T4S-A | Non-PoE, 48 Ethernet ports, 4 SFP ports |
| S5720-32X-EI-24S-AC | Advanced layer 3 features, 24 SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP |
Huawei S5735-L48LP4S-A-V2 Specifications |
|
| Brand | Huawei |
| Model Name | S5735-L48LP4S-A-V2 |
| Product Type | Fixed Port Access Switch |
| Fixed Ports | 48 x 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ |
| Power Over Ethernet (PoE) | Supports PoE+ |
| Flash Memory | 512 MB |
| RAM | 1 GB |
| Switching Capacity | 336 Gbps |
| Forwarding Performance | 78 Mpps |
| Input Voltage | AC: 100V-240V, DC: -48V/-60V |
| Power Consumption | Operational: Max 53W (without PoE) |
| MAC Address Table | 16K |
| Management | Web-based management, SNMP v1/v2c/v3, CLI (Console/Telnet/SSH) |
| Jumbo Frame Support | 9,216 bytes |
| Quality of Service (QoS) | Supports advanced QoS features |
| Layer Supported | Layer 2 and Layer 3 |
| Network Protocols Supported | IPv4, IPv6, static routing, RIP, OSPF, BGP, and VRRP |
| Virtual LANs | 4K VLANs |
| Security Features | ACLs, RADIUS, TACACS+, SSH v2, HTTPS, and SNMPv3 |
| Stacking Capability | Supports hardware and software stacking |
| Enclosure Type | 1U height rack-mountable |
| Operational Temperature | 0°C to 50°C |
| Operational Humidity | 10% to 90% (non-condensing) |
