รายละเอียดสินค้า:
|
| ชื่อสินค้า: | สวิตช์เครือข่ายของหัวเว่ย | หมายเลขชิ้นส่วน: | AC6508 |
|---|---|---|---|
| การชำระเงิน: | TT/เพย์พาล | การจัดส่ง: | ดีเอชแอล |
| เงื่อนไข: | ใหม่ | เวลานำ: | 2-3 วัน |
| การรับประกัน: | 1 ปี | คำหลัก: | AC6508 |
| เน้น: | Huawei AC6508 wireless controller,10GE enterprise WLAN access point,Huawei 512 AP management switch |
||

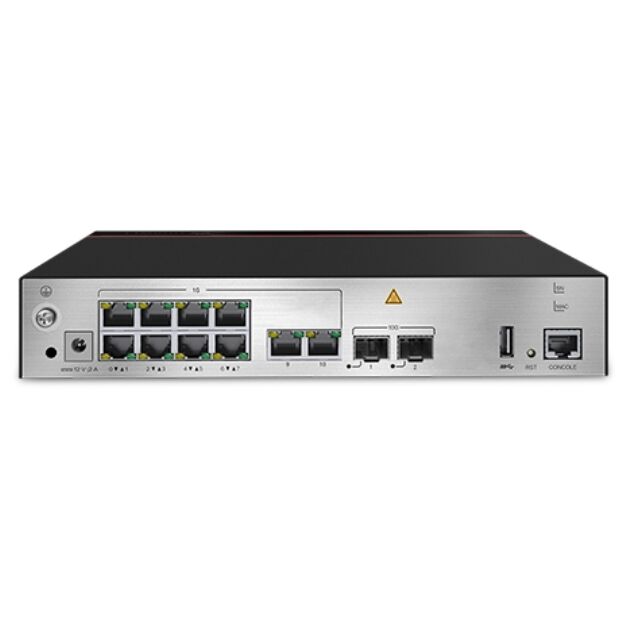

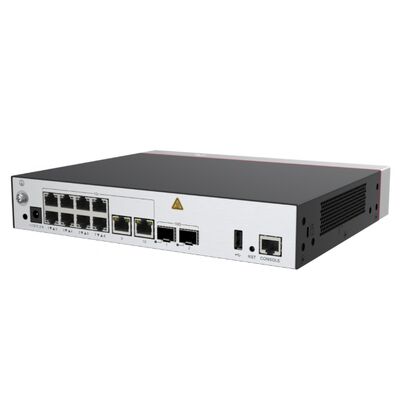

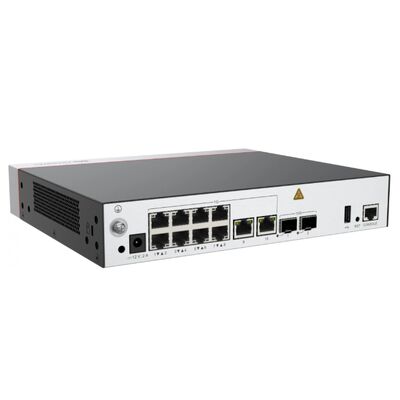

The Huawei AC6508 is a compact, high-performance Wireless Access Controller (WLAN AC) purpose-built for small and medium-sized enterprises (SMEs). It unifies wired and wireless network management by integrating a built-in Gigabit switch, delivering a simplified, cost-effective networking solution.
| Parameter | Specification |
|---|---|
| Model | AC6508 |
| Ports | 10 x GE RJ45, 2 x 10GE SFP+ |
| Max Managed APs | 512 |
| Forwarding Capacity | 10 Gbps |
| Max Users | 4,096 |
| Power | AC/DC Adapter (25.06W)华为 |
| Dimensions | 43.6 x 250 x 210 mm |
| Weight | 1.9 kg |
| Hardware | Details |
|---|---|
| Form Factor | Desktop/Wall-mount/Rack-mount |
| Interfaces | 10 x GE electrical, 2 x 10GE SFP+ optical |
| Management | 1 x Console, 1 x MGMT, 1 x USB 2.0 |
| Memory | Flash: 1GB |
| Power Input | 100~240V AC, 12V DC |
| Max Power | 25.06W |
| Heat Dissipation | Fanless, 85.50 BTU/hour |
| Operating Temp | 0°C ~ 45°C |
| Performance | |
| AP Capacity | Up to 512 APs |
| User Capacity | Up to 4,096 concurrent users |
| Throughput | 10 Gbps switching capacity |
| Protocols & Features | |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be |
| Networking Modes | Inline, Bypass, Bridge, Mesh |
| Forwarding Modes | Local (Direct) & Centralized (Tunnel) |
| Security | Portal/802.1X Auth, ACL, WPA2/WPA3 |
| High Availability | 1+1 Hot Standby (HSB) |
| Management | |
| Interfaces | Web UI, CLI, eSight, SNMP |
