รายละเอียดสินค้า:
|
| ชื่อสินค้า: | สวิตช์เครือข่ายของหัวเว่ย | หมายเลขชิ้นส่วน: | S5735I-S8U4XN-V2 |
|---|---|---|---|
| การชำระเงิน: | TT/เพย์พาล | การจัดส่ง: | ดีเอชแอล |
| เงื่อนไข: | ใหม่ | เวลานำ: | 2-3 วัน |
| การรับประกัน: | 1 ปี | คำหลัก: | S5735I-S8U4XN-V2 |
| เน้น: | Huawei CloudEngine S5735I switch,8-port GE RJ45 network switch,4x10GE SFP+ PoE++ switch |
||

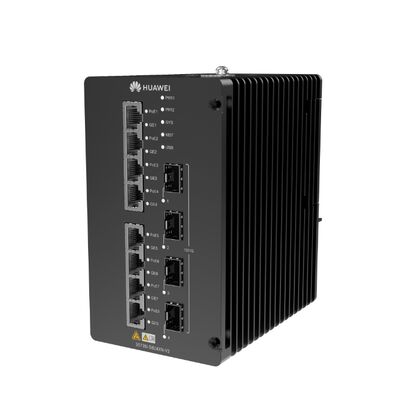

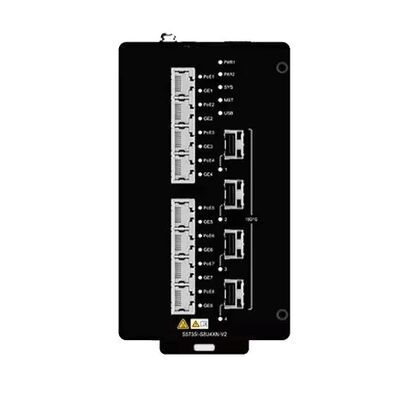

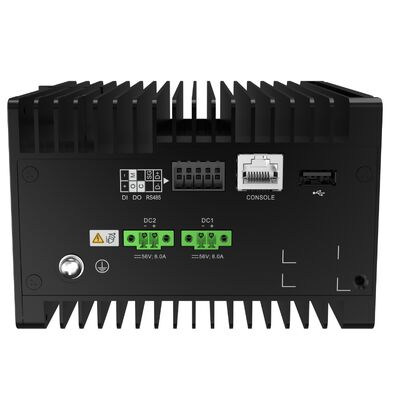

Introducing the Huawei S5735I-S8U4XN-V2, a reliable switch designed for enhanced performance in various network setups. With 8*10/100/1000BASE-T ports and 4*10GE SFP+ ports, this fanless, PoE++-enabled switch is perfect for industrial environments requiring stable and high-speed data transmission. Ideal for engineers and procurement personnel, the S5735I-S8U4XN-V2 ensures seamless integration and robust network reliability.
Product Features Comparison
| Model | S5735I-S8U4XN-V2 | Cisco IE-3300-8P2S | D-E-L-L EMC N1524 | HPE 1950-24G | Netgear M4300 | Juniper EX2200 | Aruba 2930F |
|---|---|---|---|---|---|---|---|
| Ports | 8*10/100/1000BASE-T, 4*10GE SFP+ | 8*GE, 2*10GE SFP | 24*GE | 24*GE, 4*10GE SFP+ | 24*GE, 4*10GE SFP+ | 12*GE, 1*10GE SFP+ | 24*GE, 4*10GE SFP+ |
| Power Supply | 54 to 57V DC | PoE/PoE+ | 100-240V AC | 54V DC | 54V DC | 54V DC | 54V DC |
| PoE Support | PoE++ | PoE/PoE+ | No | Yes | Yes | No | Yes |
| Mounting | DIN Rail | Rack/Wall | Rack | Rack | Rack | Rack | Rack |
| Cooling | Fanless | Fan | Fan | Fanless | Fanless | Fan | Fan |
Optional Add-ons
| Accessory Model | Description |
|---|---|
| SPF-10G-SR | 10G Base-SR SFP+ Transceiver |
| RPS2300 | Redundant Power System |
| ACC-DINRAIL | DIN Rail Mounting Kit |
S5735I-S8U4XN-V2 Specification |
|
| Chassis Material | Metal |
| Height [mm] | 150.0 mm |
| Depth [mm] | 133.0 mm |
| Width [mm] | 86.0 mm |
| Chassis Height [U] | 3.65 |
| Weight with Packaging [kg(lb)] | 2.21 (4.87) |
| Weight without Packaging [kg(lb)] | 1.86 (4.1) |
| Maximum Power Consumption [W] | - Without PoE: 21.7 W - Full PoE load: 421.7 W (PoE: 400 W) |
| Typical Power Consumption [W] | 20.45 |
| Heat Dissipation Mode | Natural heat dissipation |
| Maximum Heat Dissipation [BTU/hour] | - Without PoE: 74.01 - Full PoE load: 1438.11 (PoE: 1364.10) |
| Typical Heat Dissipation [BTU/hour] | 69.74 |
| Power Supply Mode | DC external |
| Input Voltage Range [V] | DC input: - 54 V DC to 57 V DC (PoE/PoE+/PoE++) - 48 V DC (PoE) |
| Rated Input Voltage [V] | DC input: 56 V DC |
| Maximum Input Current [A] | 8.0 A |
| Number of Power Slots | 0 |
| Number of Card Slots | 0 |
| Memory | 2 GB |
| Flash Memory | Physical space: 1 GB |
| Redundant Power Supply | 1+1 Note: If the PAC240S56-CN power module is used, one PAC240S56-CN can supply power to only one S5735I-S8U4XN-V2 at a time. |
| Types of Fans | None |
| Noise at Normal Temperature (Acoustic Power) [dB(A)] | Noise-free (no fans) |
| Noise at Normal Temperature (Acoustic Pressure) [dB(A)] | Noise-free (no fans) |
| Airflow Direction | - |
| Storage Temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Long-Term Operating Temperature [°C(°F)] | 0–1800 m (0–5906 ft.) altitude, industrial optical modules: - Sealed cabinet: –40°C to +60°C (–40°F to +140°F) - Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F) - Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F) |
| Restriction on the Operating Temperature Variation Rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-Term Operating Relative Humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage Altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-Term Operating Altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF [year] | 89.43 |
| MTTR [hour] | 2 |
| Availability | > 0.99999 |
| Maximum Number of Physical Ports on the Entire Device | 12 |
| Maximum Number of 100GE Ports | 0 |
| Maximum Number of 40GE Ports | 0 |
| Maximum Number of 25GE Ports | 0 |
| Maximum Number of 10GE Ports | 4 |
| Maximum Number of GE Ports | 12 |
| Maximum Number of FE Ports | 8 |
| 10GE Optical Interface | 4 |
| 1000M Electrical Interface | 8 |
| USB | Supported |
| Console Port | RJ45 |
| Eth Management Port | Not supported |
| Service Port Surge Protection [kV] | Common mode: ±7 kV |
| Power Supply Surge Protection | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| RPS Input | Not supported |
| PoE | Supported |
| PoE Power Supply | Supported |
