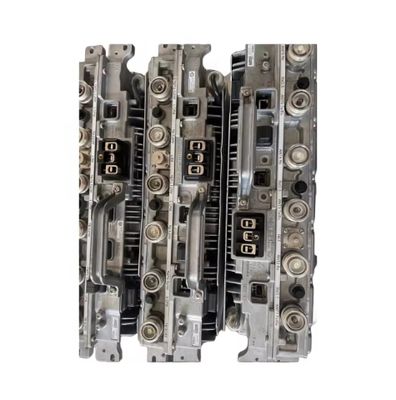

474914A(AHEGC) A Nokia AirScale Dual Remote Radio Head (RRH) That Supports The 2100 MHz (Band 1) And 1800 MHz (Band 3) Frequency Bands

474914A(AHEGC) is a Nokia AirScale Dual Remote Radio Head (RRH) that supports the 2100 MHz (Band 1) and 1800 MHz (Band 3) frequency bands. It has a compact and flexible design, with options for different mounting and heat shield configurations, and connects to the baseband unit via CPRI.

• Product: Nokia AHEGC AirScale Dual RRH
• Part Number: 474914A
• Configuration: 4T4R (4 transmit, 4 receive)
• Frequency Bands: Band 1 (2100 MHz) and Band 3 (1800 MHz)
• Maximum Output Power: 400W
• Connectivity: Connects to baseband unit via CPRI
• Supported Technologies: GSM, WCDMA, FDD/TDD LTE, and is 5G-ready
• Modulation: Up to 256QAM
• Dimensions (approximate, with heat shield):
  • Width: 327 mm
  • Height: 578 mm
  • Depth: 155 mm
• Weight (with heat shield): 34.2 kg
• Power Supply: 48 VDC

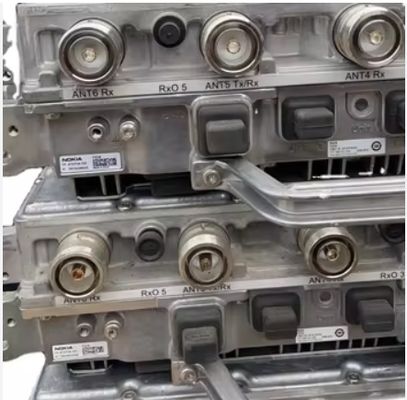

• Antenna Ports: 4.3-10 connectors
• Other Features:
  • Upgradeable to concurrent LTE+NR via software
  • Supports various operating modes, including 8T8R and 2x 4T4R
  • Includes port for Remote Electrical Tilt (RET) control
