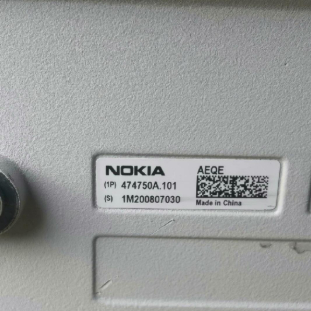

474750A (AEQE) A Component Of A Base Station For Mobile Networks

474750A (AEQE) A Component Of A Base Station For Mobile Networks
474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks

ภาพใหญ่ :  474750A (AEQE) A Component Of A Base Station For Mobile Networks

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: Nokia
ได้รับการรับรอง: CE
หมายเลขรุ่น: 472181A FSMF
เอกสาร: LONRISE EQUIPMENT Company ...le.pdf
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 พีซี
เวลาการส่งมอบ: 1-3 วัน
เงื่อนไขการชำระเงิน: T/T, Western Union

474750A (AEQE) A Component Of A Base Station For Mobile Networks

ลักษณะ
ยี่ห้อ: โนเกีย แบบอย่าง: 474750A (AEQE)
เงื่อนไข: ใช้แล้ว การรับประกัน: 3 เดือน
เวลานำ: 1-3 วัน เวลาการส่งมอบ: 3-5 วัน
การใช้งาน: สถานีฐาน พิมพ์: ร.ฟ.ท
เน้น:

optical transceiver module for mobile networks

,

base station component optical transceiver

,

AEQE optical transceiver module

Overview

The 474750A (AEQE) is a component of a base station for mobile networks. It features 64 transmit/receive (T/R) paths with support for 64T64R MIMO, 256QAM modulation, and 200 MHz instantaneous bandwidth. The unit supports digital beamforming, a 32TRX + 32TRX split mode, and connects to the baseband unit via eCPRI over SFP28 ports.

474750A (AEQE) A Component Of A Base Station For Mobile Networks 0474750A (AEQE) A Component Of A Base Station For Mobile Networks 1

Key specifications
  • Model: 474750A (AEQE)
  • Product: Nokia AirScale MAA 64T64R 192AE n78 200W (Massive Antenna Array)
  • Technology: 5G NR
  • Frequency Band: n78 (
    3480 38003480 space 3800
    3480 3800
    MHz)
  • Bandwidth: 200 MHz (instantaneous), 100 MHz (occupied)
  • Output Power: 200W total, 3.125W per TRX (software settable)
  • Transmitter/Receiver Paths: 64T / 64R
  • MIMO Streams: 16
  • Modulation: Up to 256QAM
  • Beamforming: Digital, 64T64R
  • Connectivity: Dual SFP28 (10/25GE eCPRI) for baseband connection
  • Dimensions:
    750*450*240750 cross 450 cross 240
    750*450*240
    mm (H x W x D)
  • Weight: 45 kg (without bracket)
  • Supply Voltage:
    -40.5negative 40.5
    −40.5
    to
    -57negative 57
    −57
    V DC
  • Ingress Protection: IP65 / Class II, 20 kA
Features
  • Supports split mode with 32TRX + 32TRX capability
  • Supports digital beamforming for multi-user MIMO
  • Compliance with 3GPP/CEPT/Ficora/ETSI NR standards

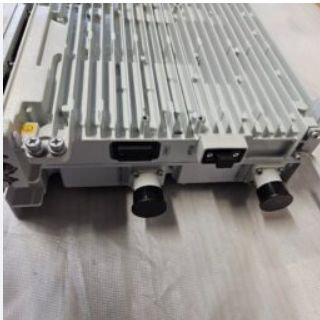

  • Includes other ports for RF monitoring (SMA), control (AISG), alarms (MDR26), and LMI/HDMI
  • Natural convection cooling

474750A (AEQE) A Component Of A Base Station For Mobile Networks 6
