รายละเอียดสินค้า:
|
| Model: | C9200L-24T-4G-E | Downlinks total 10/100/1000: | 24 ports data |
|---|---|---|---|
| Uplink configuration: | 4x 1G fixed uplinks | Default primary AC power supply: | PWR-C5-125WAC |
| Fans: | Fixed redundant | Software: | Network Essentials |
| Stacking bandwidth: | 80 Gbps | DRAM: | 2 GB |
| Flash: | 4 GB | Switching capacity: | 56 Gbps |
| Forwarding rate: | 83.33 Mpps | Chassis Dimensions: | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Weight: | 15.07 Kg | Warranty: | 1year |

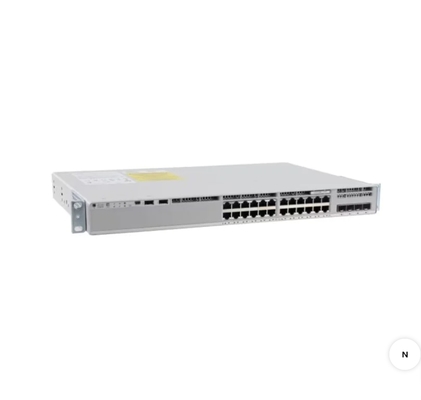

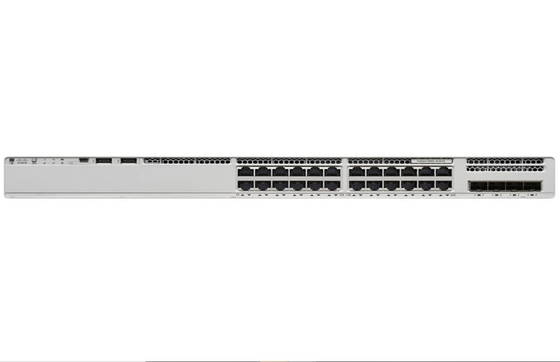

C9200L-24T-4G-E Overview
The Cisco Catalyst C9200L-48T-4G-E is a powerful and scalable network switch designed for enterprise networks. Featuring 48 10/100/1000 Ethernet ports and 4 1G uplink ports, it offers reliable and high-performance connectivity. With the Network Essentials license, this switch provides advanced features for enhanced security, automation, and network management. Ideal for businesses looking to optimize their network infrastructure, the C9200L ensures seamless operation and easy integration into existing network environments
|
Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports data |
|
Uplink configuration |
4x 1G fixed uplinks |
|
Default primary AC power supply |
PWR-C5-125WAC |
|
Fans |
Fixed redundant |
|
Software |
Network Essentials |
|
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
|
Weight |
9.59 pounds |
|
Virtual Networks |
1 |
|
Stacking bandwidth |
80 Gbps |
|
Total number of MAC addresses |
16,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
11,000 (8,000 direct routes and 3,000 indirect routes) |
|
IPv4 routing entries |
3,000 |
|
IPv6 routing entries |
1,500 |
|
Multicast routing scale |
1,000 |
|
QoS scale entries |
1,000 |
|
ACL scale entries |
1,500 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
VLAN IDs |
1024 |
|
Total Switched Virtual Interfaces (SVIs) |
512 |
|
Jumbo frames |
9198 bytes |
|
Wireless bandwidth per switch |
N/A |
|
Switching capacity |
56 Gbps |
|
Forwarding rate |
83.33 Mpps |
|
Mean time between failures (hours) |
531,030 |
